ZT1610 Pre-Coating Printable UV Flatbed Machine with Rotary Print Function UV Hard Ink

Name: ZT1610 PreCoating Printable UV Flatbed Machine with Rotary Print Function UV Hard Ink
Brand: Big-Color
Price: 8 USD

Quality ZT1610 Pre-Coating Printable UV Flatbed Machine with Rotary Print Function UV Hard Ink for sale

Type : Inkjet Printer

Print Dimension : 1600mm*1000mm

Applicable Industries : Printing Shops, Other

Condition : New

Plate Type : Flatbed Printer

Place of Origin : Anhui, China

Brand Name : Big-Color

Use : Paper Printer, Label Printer, Card Printer, Tube Printer

Automatic Grade : Automatic

Color & Page : Multicolor

Voltage : 110V/ 220V

Dimensions(L*W*H) : 2.8*1.66*1.38m

Weight : 530 KG

Warranty : 13months

Ink Type : uv ink

Key Selling Points : print coating auto in advance

Marketing Type : Hot Product 2022

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 13months

Core Components : Motor, Boards system

Product name : 1610 UV printer machine

Print head : TX800*4pcs

Color : pre coating+CMYK+White+Varnish

Resolution : 720*4320 dpi

Printing Size : 63in*40in(160*100cm)

Print speed : 7.5㎡/h

ink type : UV Curable Ink/UV hard ink/UV soft ink

Printing material : Metal,ceramic,acrylic board,wood,leather and so on

Operating System : win7/win10

Rotary printing function : available

Packaging Details : The normal package is stronger wooden box with metal structure inside(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to customers special reque

Port : shanghai/yiwu/guangzhou/ningbo

Supply Ability : 50 Set/Sets per Month

Price : $8,980.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

Big Color uv flatbed printer can print on rotary and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry
production

SPECIFICATIONS FOR ZT-1610
Product Name	1610 uv flatbed printer
Model	ZT1610
Printer head	3 tx800 heads/ 4 tx800 heads
Speed	7.5㎡/h(Production mode) / 6.5㎡/h(Precision mode) / 5.5㎡/h(High precision mode)
Max printing heigh	9.3in (240mm) with auto height sensor by beam auto up and down mode
Maximum Resolution	720*4320 dpi
Ink	pre-coating+4 color +white +varnish
Printing Type	Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Machine Dimension	2.81.661.38M
packing size	2.861.761.12M=5.64CBM
Rip software	Maintop v6.1 for main.(photoprint flexi v19 for optional ）

ZT1610 Pre-Coating Printable UV Flatbed Machine with Rotary Print Function UV Hard Ink

Do you still headache to use hand to swap pre-coating?
Do you worry about if dust drop on the material after you swap the coating?
Do you hesitate on how to printing picture on Mirror finished stainless steel without any extra pre-coating?
We now have solutions for you , 4 heads, one head to print pre-coating advance, then white +color+varnish head working directly.
Easy to control, printing speed is same.
Welcome to check detail with us

	4 head solution optional
1.	Pre-coating+white +color+varnish Pre-coating means if you printing on metal, glass, tile, you no need to use hand to swap pre-coating in advance. our printhead can print for you directly.
2	Printed glue+white+color+varnish This use for special PET film to print glue on the PET film, then the PET film adhesive on material
3	White+color+high light varnish+ silver varnish This is for 2 different varnish printing. then make sure your picture have different emboss effect
4	2 head for white+ 2 heads for color No varnish, but the print speed is double than above solutions.
	All solution we could support you the necessary ink please feel free to talk with us

CNC aluminum beam & PTFE hard oxidation vacuum platform.

CNC aluminum beam is good material for good printing.The main function is to ensure the stability of the printing process

PTFE hard oxidation vacuum flatbed means the platform hardness and can even use knife to scratch on it without any hurt. And also with strong suction function,Especially for light materials, ensure that it will not move during the printing process

Auto Height Sensor：

It can automatically measure the printing height, saving a lot of labor and time for you.

System:

Much more protessional and more stable than desktop modified printer. Control the color freely.

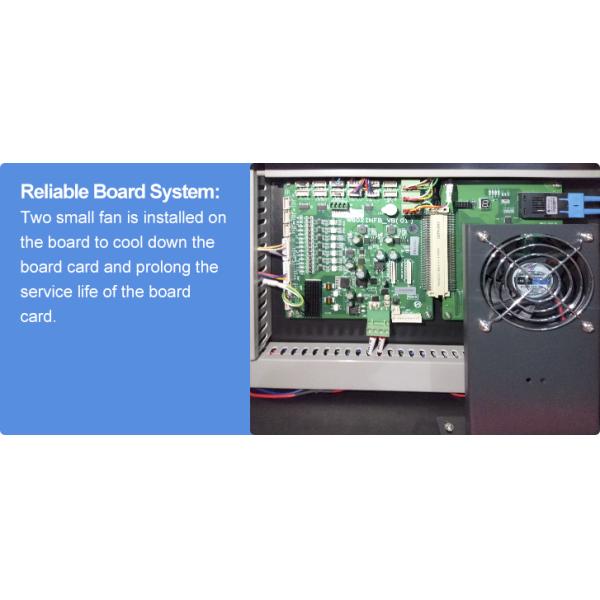

Reliable Board System.

Two small fan is installed on the board to cool down the board card and prolong the service life of the board card.

3pcs Big Water cooling Lamp

Ensure the enough power even on fast printing speed.

Ink Alarming system & Ink Stiring system:

Powder drop speed, Powder shake speed, heater temperature adjustable.

CNC stainless steal body frame

30 pcs platform adjust position to make sure a plat platform. You could print high resolution on whole area.

Stronger Screw Bar on Yaxis:

The printing movement of the machine depends on the screw.We use many stable screw to guaranteed quality.

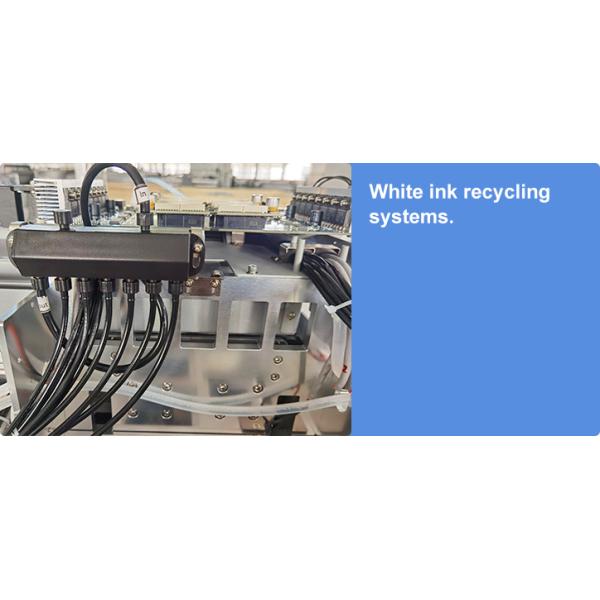

White ink recycling sytem

White ink recycling system from the inktank to damper. avoid ink sediment

Main Features

1) Not only can print on flatbed material but also can printer cylinders.

2) Automatic stirring system for white ink and lacking ink alarming system.

3) PTFE cellular flatform,durable and stable.

4) Carriage height could reach to 250mm ,and it can work on 3 heads by varnish+white+color or even 4 heads.

5) Support for multiple printing on same picture by one time,fit for most special production request .

6) Our Big color have focus on printer research manufacture for more than 10 yeas, we also work on OEM printing machine. so we could also give you best suggestion and solution for your printing request if you need.

FAQ

1. Do you offer printing free samples based my design?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount

when you machine order less than 4 sets. if more than 5 sets or need us design for you, the date can be negotiation.

3. What’s your payment method?
Payment method is T/T , Western Union, Paypal.

4. If I have some technical problem, how can you help us to solve it?
Firstly, we have lots of teaching video to help you install machine . and then we have engineer to use the Teamviewer and Anydesk to help you finish . Most of engineer have been in our factory for more than 5 years. we are sure you could get best reliable service.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request. Also for OEM model.

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
