Automatic Grade ZT Multicolor 9060 Flatbed UV Printer 3 TX800 Heads and Direct Printing

Name: Automatic Grade ZT Multicolor 9060 Flatbed UV Printer 3 TX800 Heads and Direct Printing
Brand: Big-color
Price: 7 USD

Quality Automatic Grade ZT Multicolor 9060 Flatbed UV Printer 3 TX800 Heads and Direct Printing for sale

Type : Inkjet Printer

Print Dimension : 100mm*70mm

Applicable Industries : Printing Shops, Advertising Company

Condition : New

Plate Type : Flatbed Printer

Place of Origin : Anhui, China

Brand Name : Big-color

Use : Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer

Automatic Grade : Automatic

Color & Page : Multicolor

Voltage : 220V/110V

Dimensions(L*W*H) : 2120*1500*1220mm

Weight : 380 KG

Warranty : 13 months

Ink Type : uv ink

Key Selling Points : High Productivity

Marketing Type : Hot Product 2022

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 13 months

Core Components : Motor, Engine, boards system

Product name : Multicolor uv flatbed printer

Ink type : UV Curable Ink/UV hard ink/UV soft ink

Application : Flat Items and rotary items

Printing Material : Metal,ceramic,acrylic board,wood,leather and so on

Color : CMYK+White+Varnish

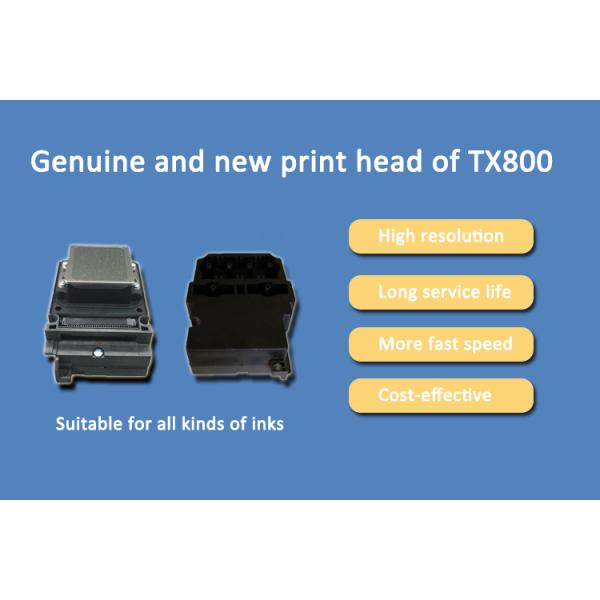

Print head : TX800

Printing size : 35.43*23.62in

operating system : win7/win10

After Warranty Service : Video technical support

Certification : CE,ROHS,MSDS

Packaging Details : The normal package is stronger wooden box with metal structure inside(packaging size: 2300*1400*1500mm). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to c

Port : shanghai

Price : $7,000.00/sets 1-9 sets

MOQ : 1 set

Contact Now

Model No	Print head	Printing area	Printing height	Speed	Color
A3-UV-single head	1 pcs Epson DX8	40*30cm	15cm	120sec/page (A3)	CMYK+W
A3-UV/DTG-double head	2 pcs Epson DX8	40*30cm	15cm	80sec/page (A3)	CMYK+W+V
A3-DTG-single head	1 pcs Epson DX7	40*30cm	15cm	120sec/page (A3)	CMYK+W
A2-UV/DTG-doube head	2 pcs Epson DX8	40*60cm	15cm	60sec/page (A3)	CMYK+W+V
9060-dx8	3 pcs Epson DX8	100*70cm	8cm	4.5m²/h	CMYK+W+V
9060-4720	3 pcs Epson 4720	100*70cm	8cm	10m²/h	CMYK+W+V
1610-dx8	3 x Epson DX8	160*100cm	25cm	6.5m²/h	CMYK+W+V
1610-4720	3 x Epson 4720	160*100cm	25cm	12m²/h	CMYK+W+V
2513-dx8	3 pcs Epson DX8	250*130cm	8cm	6.5m²/h	CMYK+W+V
2513-4720	3 pcs Epson 4720	250*130cm	8cm	12m²/h	CMYK+W+V

Product Application

Big Color small size uv flatbed printer can print on roraty and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

Product Description

SPECIFICATIONS FOR ZT-9060
Product Name	9060 uv flatbed printer
Model	ZT9060
Printer head	3 tx800 heads
Speed	6.5m2/h(Production mode) / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode)
Maximum Resolution	720*4320 dpi
Ink	4 color +white +varnish
Printing Type	Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Machine Dimension	2.121.51.22m
packing size	2.561.441.50M=5.53CBM

Automatic Grade ZT Multicolor 9060 Flatbed UV Printer 3 TX800 Heads and Direct Printing

Special capping cleaning system

Equiped with 3 separate ink pump.can pump and cleaning separate

Save ink and improve cleaning efficiency

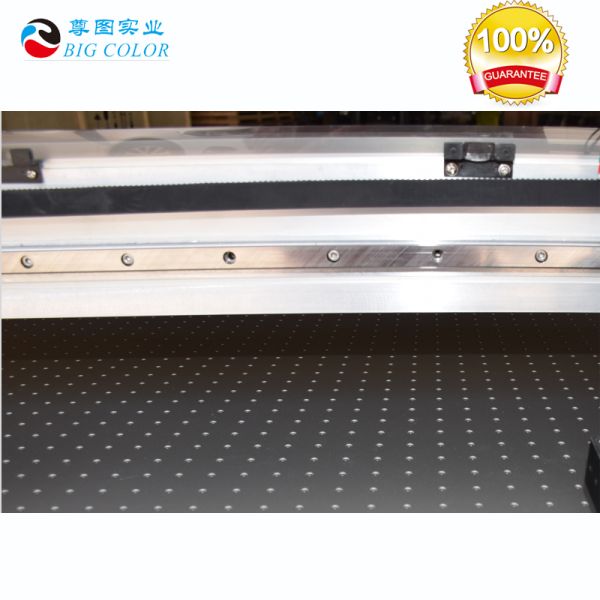

CNC aluminum beam&PTFE cellular platform

Machine use CNC stronger aluminum beam and cellular platform

which make sure the printing with high resolution and stronger vaccum system

Double screw rob system

Machine installed by 2 screw rob system.Which make carriage and beam move more stable and longer working life

Stable board with cooling fan

Reliable boards system work on stable,high precision machine body ,it can work on any line.When the temperature is high, there is a cooling fan automatically cool down.

3 pcs uv led lamp

The ink printed by the print head is quickly dried at high temperature to ensure a clean and bright pattern.

Automatically detect the height
Carriage height could reach to 8cm ;and it can work on 3 heads by varnish+white+color,Print speed faster,and control easier.

Automatic strring system
Automatic stirring system for white ink and lacking ink alarming system.Making sure non-stop working.Together with alarm function for ink shortage.

2 heads for choose

Main Features

1) Not only can print on flatbed material but also can printer cylinders.

2) Automatic stirring system for white ink and lacking ink alarming system.

3) PTFE cellular flatform,durable and stable.

4) Carriage height could reach to 8cm ,and it can work on 3 heads by varnish+white+color.

5) Support for multiple printing on same picture by one time,fit for most special production request .

Our Exhibition

Our Factory

Certifications

Samples Display

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	2.561.441.50M=5.53CBM
Weight	0.38 T
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Delivery
Delivery Time	7 days after payment
Port	Shanghai port or as customer's request.
